SKU: 3100700

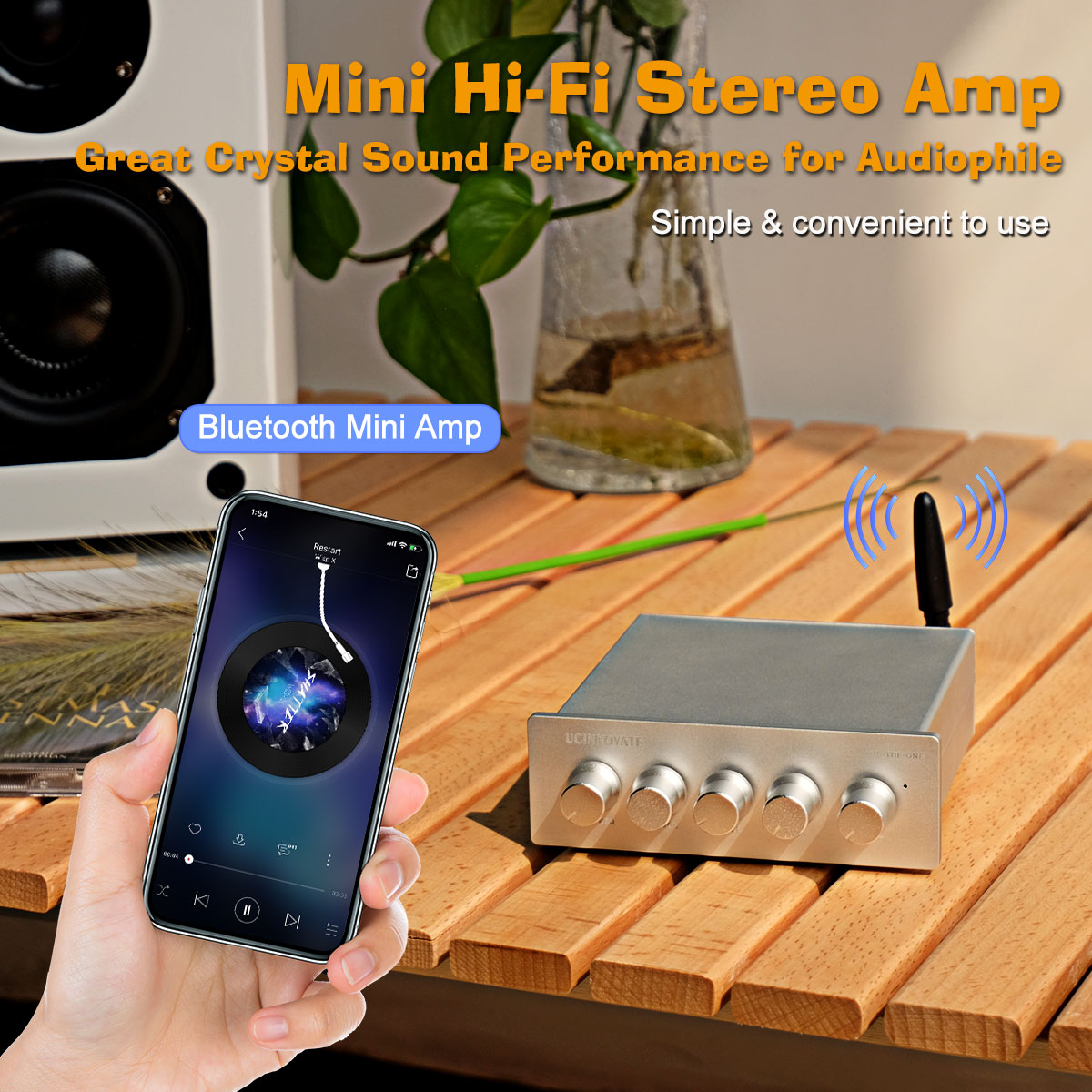

[BLUETOOTH 5.0 Audio Amplifier] - This Digital Audio Power Amplifier is equipped with Wireless Bluetooth 5.0, streaming wireless range up to 50ft(15m), Compatible with most Your Favorite Audio/Computerized Devices(including for Phone, Android, Smartphone, Pad, Tablet, PC, etc.).

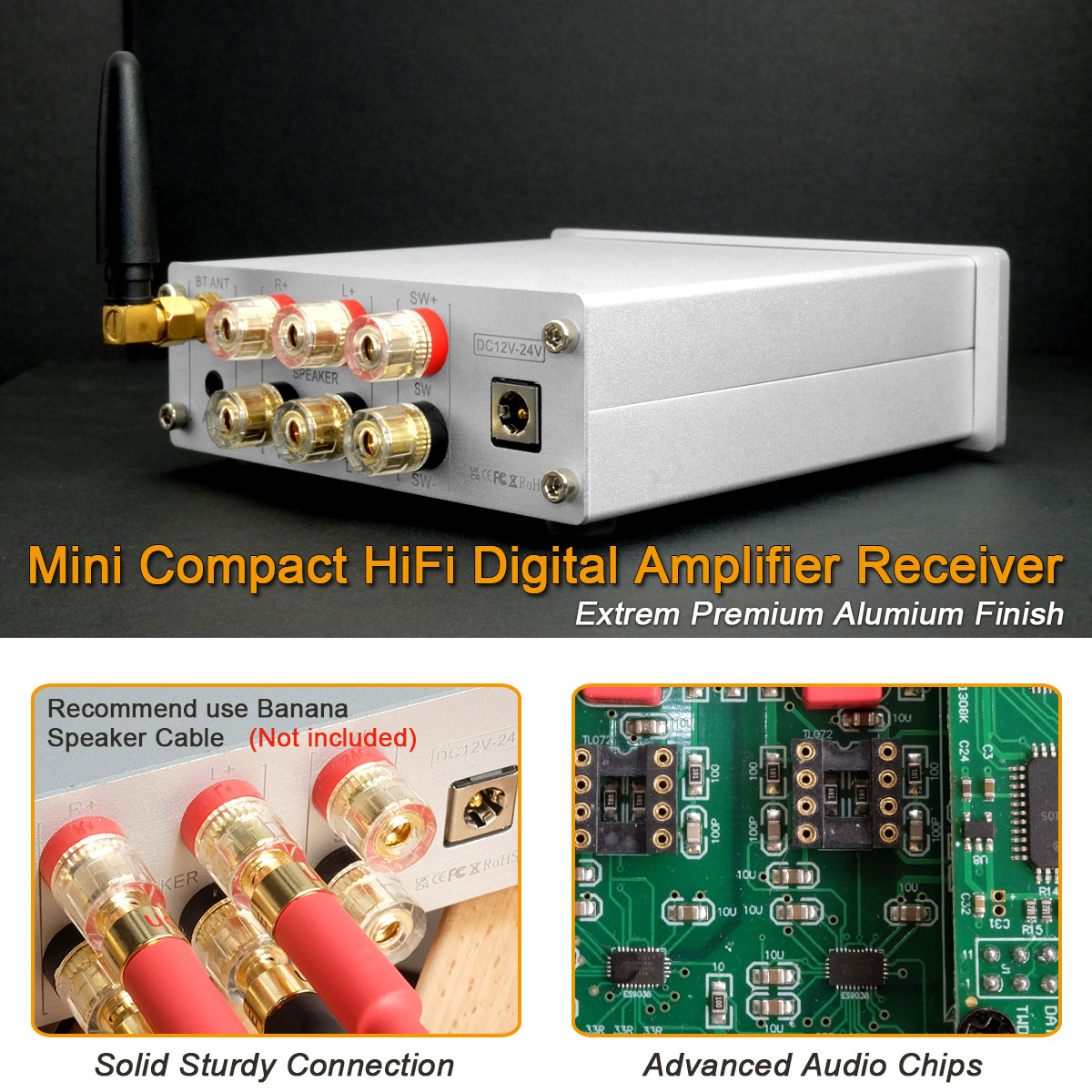

[Advanced Design] - Adopt advanced IC chips make sure get clear crystal sound, no audible noise, dead silent, Exclusively designed for the music lovers audiophile who pursue Hi-Fi Sound. Advanced circuitry design, Overheat Protection, Reverse protection, Cir-cuit Protection, Over-voltage and Under-voltage Protection. Sturdy solid alloy housing, full kit with 1 x Amplifier, 1 x Power Adapter and 8 x Sound Dampening Rubber Pad for Speaker. Plug and play convenient kit.
[Easy to Use] - This Home Mini Hi-Fi Integrated Amplifier is with responsive buttons for Bass & Treble Control, Subwoofer Frequency Control, Subwoofer Volume Control. Nice for Home Theater Passive Speakers & Passive Subwoofer. We recommend you can using banana plugs wire cable for superior sound (not Included in package). A nice gift pack for your friend. Please reference the user manual for more information.

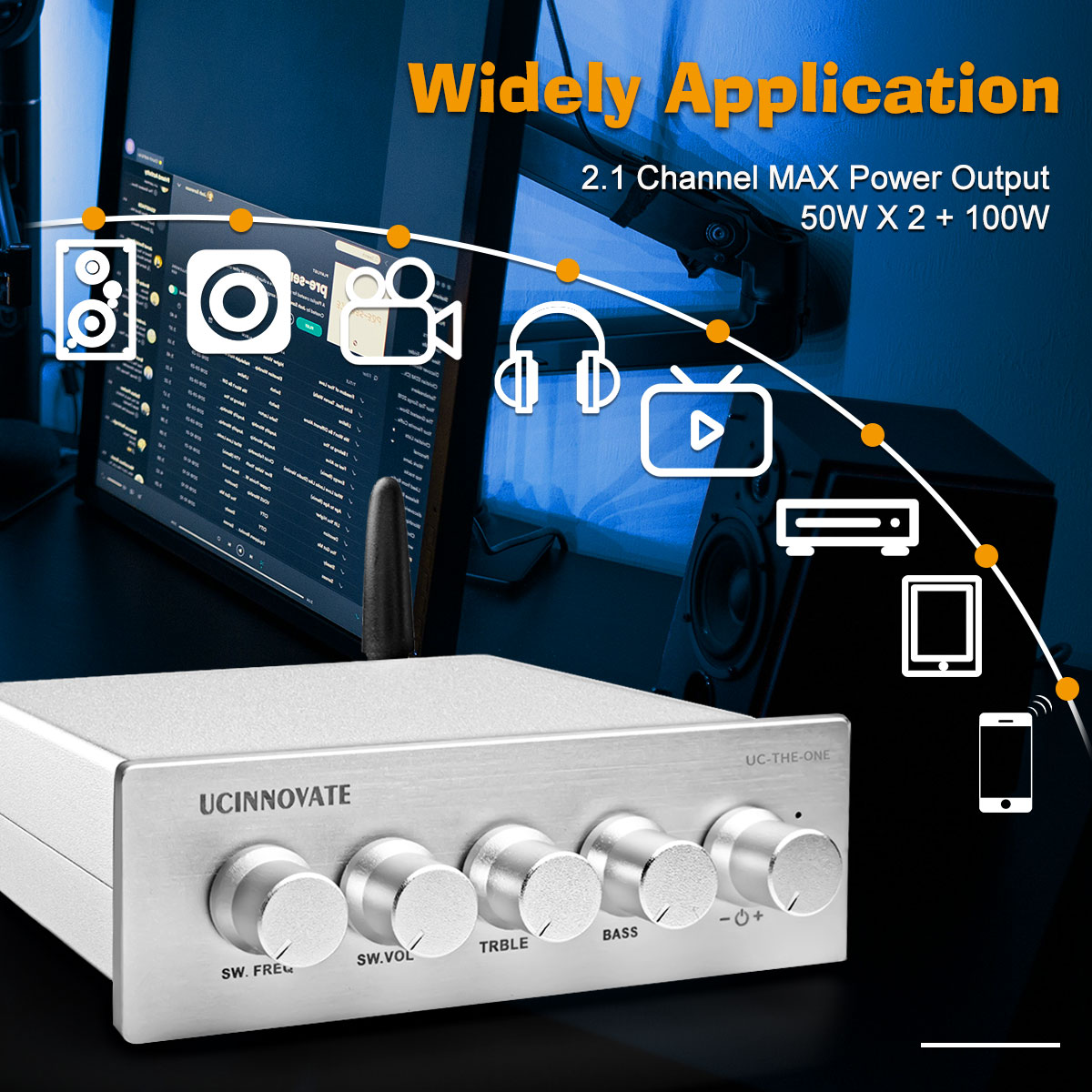

[Widely Application] - UCINNOVATE home mini Bluetooth 5.0 Stereo Audio Amplifier Receiver supports both Bluetooth and AUX Audio Input, suitable for most home passive Speaker and Subwoofer. Ideal for a small space at home or office such as Home Theater, home TV Audio, Garden Speaker etc., Small simple compact design but practical and powerful.

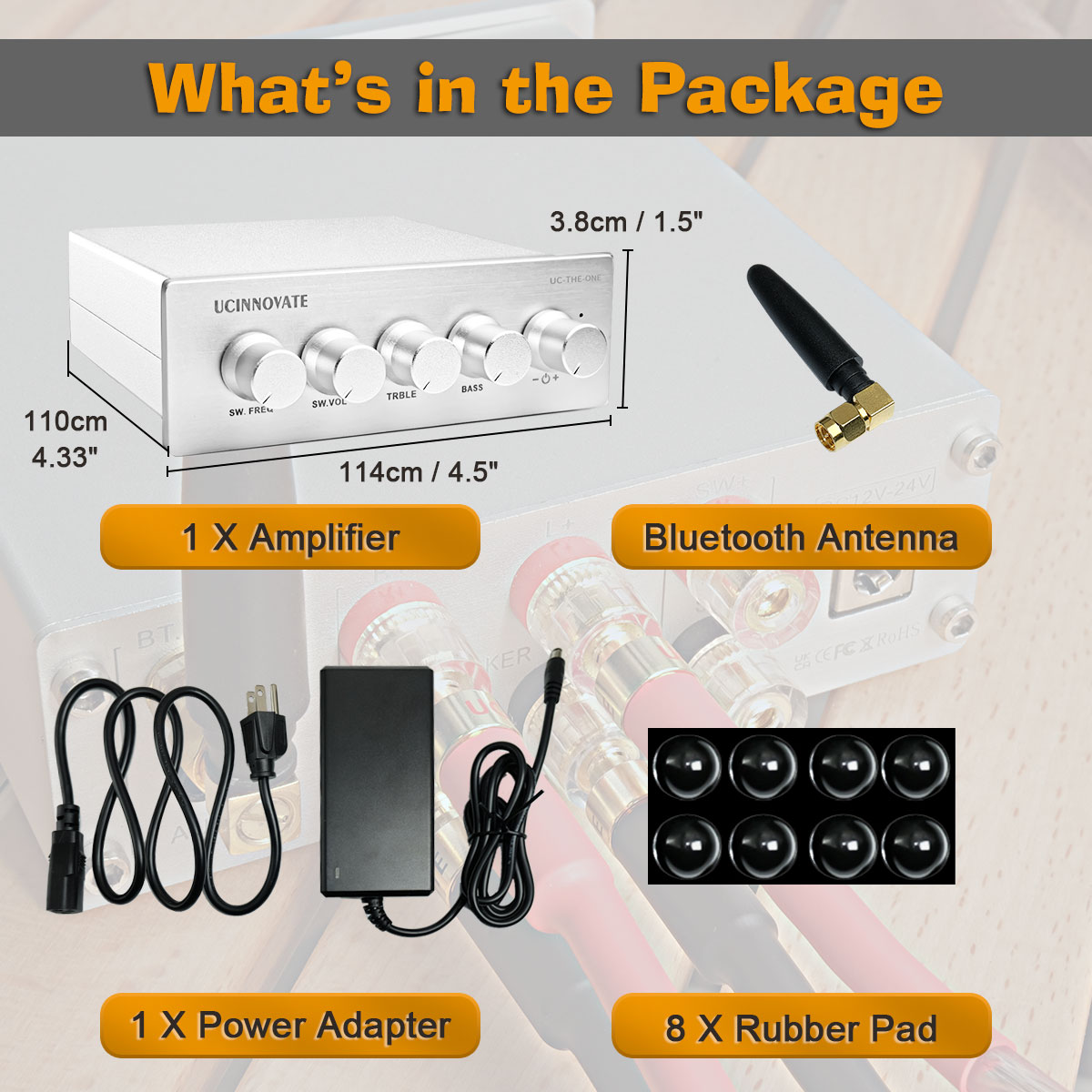

Package Included:
1 x Bluetooth 5.0 Power Amplifier
1 x 24V Power Adapter
1 x User Manual
8 x Sound Dampening Rubber Pad for Speaker
2.1 Channel Bluetooth Mini Stereo Power Amplifier
Product Parameters:
- Model: UC-THE-ONE
- Number of Channel: 2.1
- Bluetooth Version: BT 5.0
- Audio Input Model: Bluetooth and AUX
- Audio Output: Speaker/Subwoofer
- MAX Power Output: 50 W x 2+100 W (4Ω,24 V)
- Matched Speaker Impedance: 4 Ω - 8 Ω
- AMP IC Chip: UC2090A+
- Frequency Range: 20Hz - 20kHz (±3 dB)
- THD: ≤ 0.01%
- SNR: ≥ 115 dB
- Treble & Bass Range: ± 9 dB
- Input Sensitivity: ≤ 300 mV
- Working Voltage: DC 12 V-24 V (don't exceed 25 V)
- Bluetooth Transmission Distance: up to 50ft(15m)
- AMP Dimensions (W*D*H): 115*135*39 mm/4.5*5.3*1.5 in
- Net Weight: 408 g / 0.92 lb
- Package Weight: 950 g / 2.12 lb
How to USE the "UC-THE-ONE" (Power Amplifier)?
STEP 1: .
1.Connect the power adapter to the Power-In of the UC-THE-ONE.
2.Connect the passive speakers and subwoofer to the UC-THE-ONE
With Banana Plugs / Bare Wires.
STEP 2:
1.Bluetooth Input: Turn on the power switch, and then switch on the Bluetooth of your device. Search and pair "UC-THE-ONE" (PIN: 7777). Once successfully connected, you will hear prompt tone.
2.AUX Input: Turn off the UC-THE-ONE. Connect the 3.5mm Audio
Plug to the AUX interface.Then turn on the power switch. Please make
Sure cutting all the Bluetooth connection in advance with the UC-THE-ONE by Switching off the Bluetooth or unpairing the device "UC-THE-ONE".
STEP 3:
Adjust the Volume control, Bass / Treble control, Sub Volume / Fre-quency control, and then enjoy it!
